PVC Film Printing Laminating Embossing Machine for Flooring

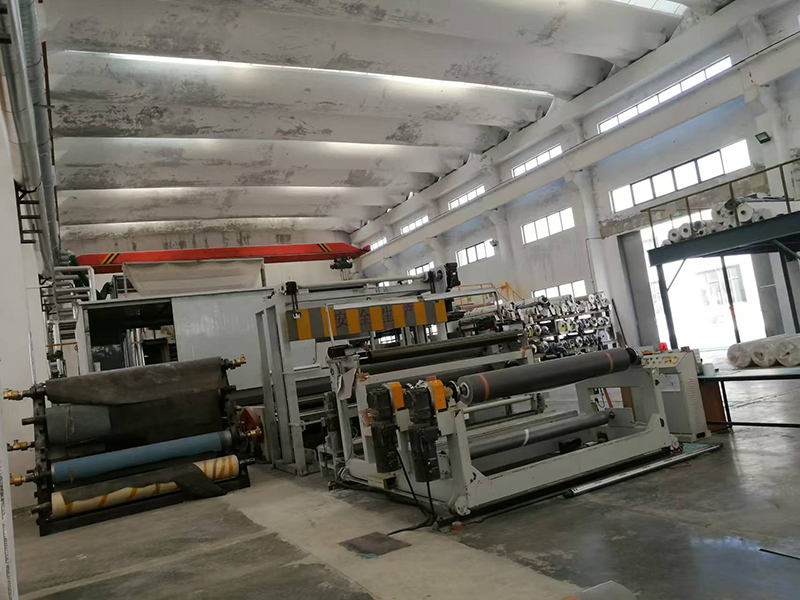

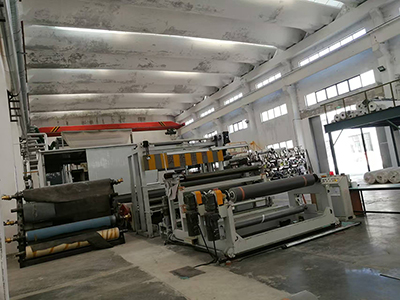

PVC Film Printing Laminating Embossing Machine (for PVC Flooring)

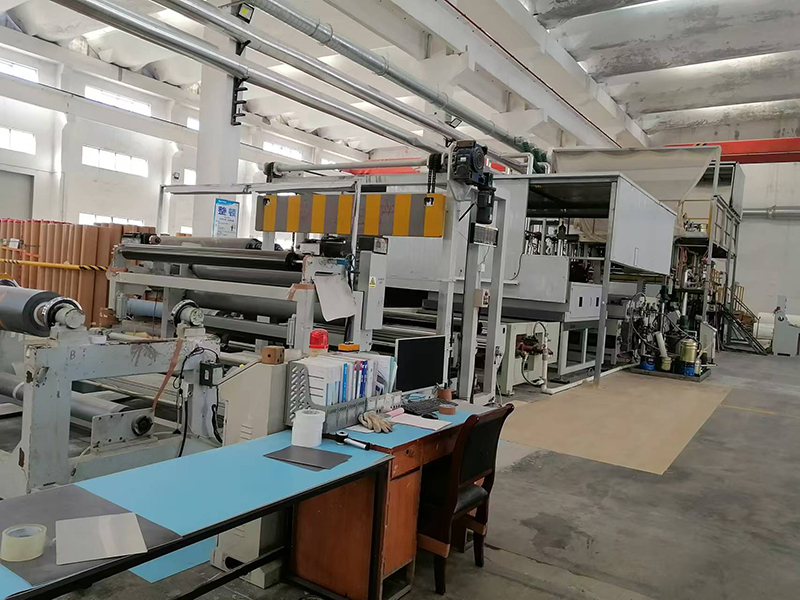

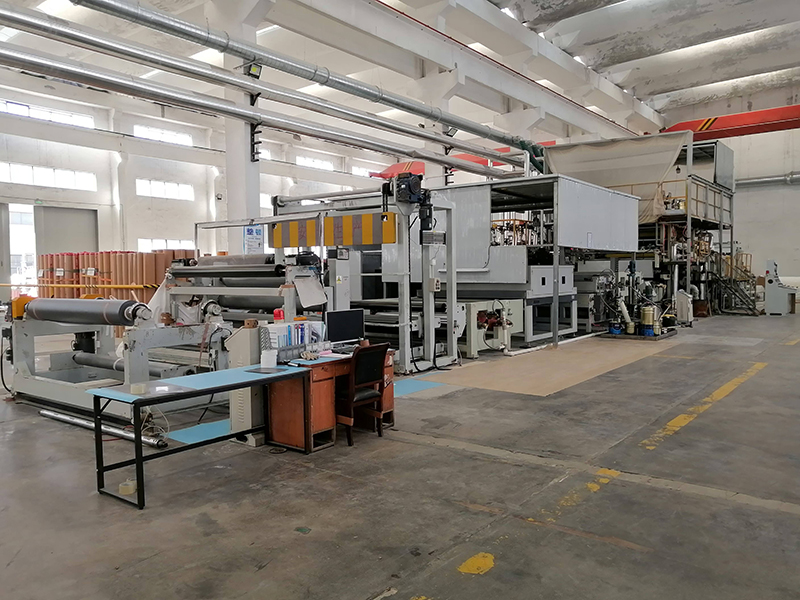

Ideal for producing PVC flooring, this PVC film printing laminating embossing machine is capable of carrying out three processes in one machine. The PVC film is first printed, then combined with fiberglass for added durability. The final step involves heat embossing and cooling to achieve a reliable, resilient floor covering. The finished PVC flooring is suitable for commercial spaces such as hotels, hospitals, and shopping malls.

Specifications

Roller width: 2200mm
Effective width: 2000mm
Machine speed: 30m/min
Production speed: 1-20m/min

Web tension range: 5-50kg
Tension control accuracy: ±0.5kg
Power consumption: 80kW

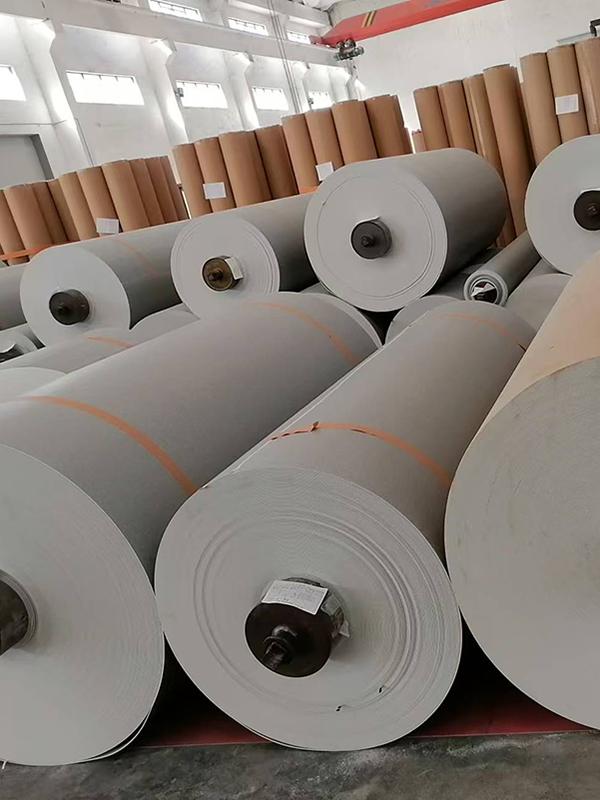

Applicable material: PVC film + fiberglass (one layer of PVC and one layer of fiberglass)

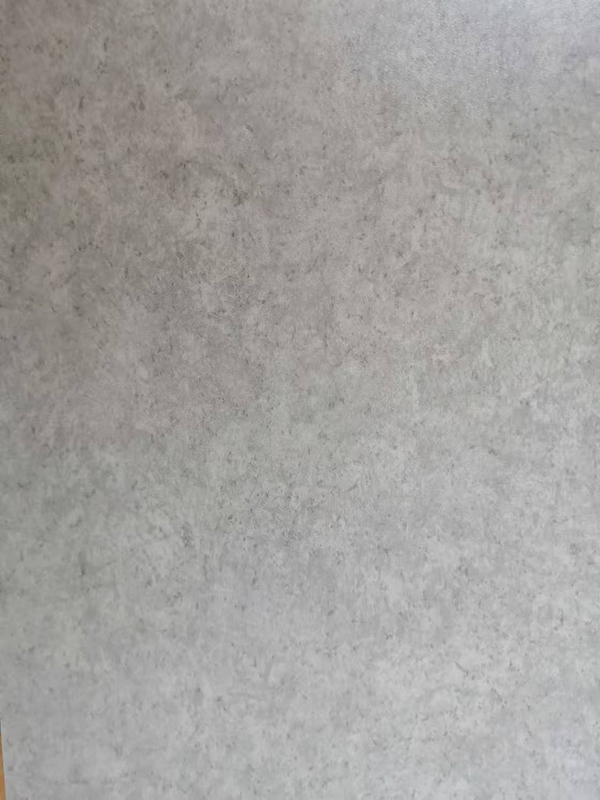

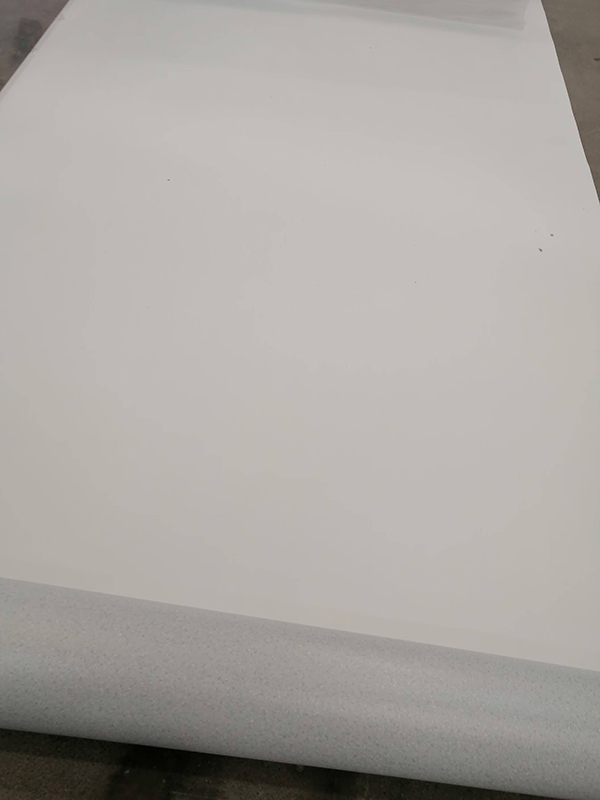

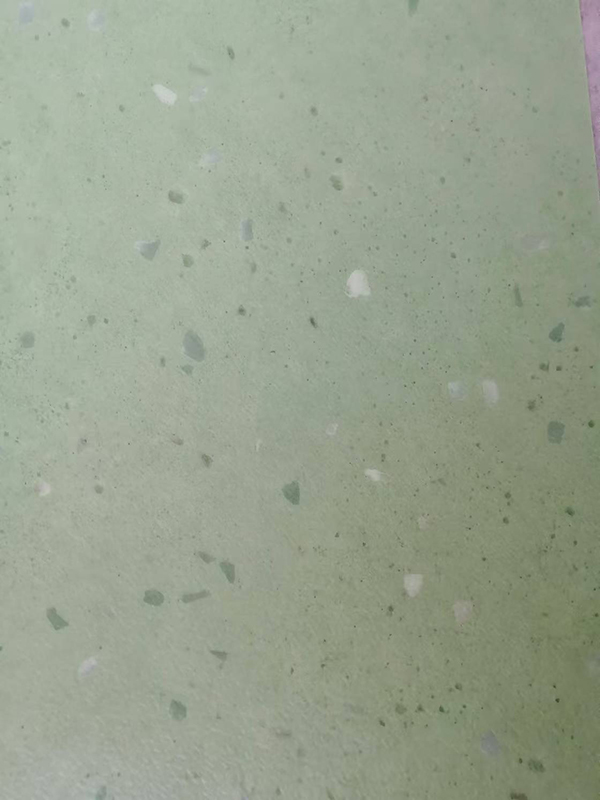

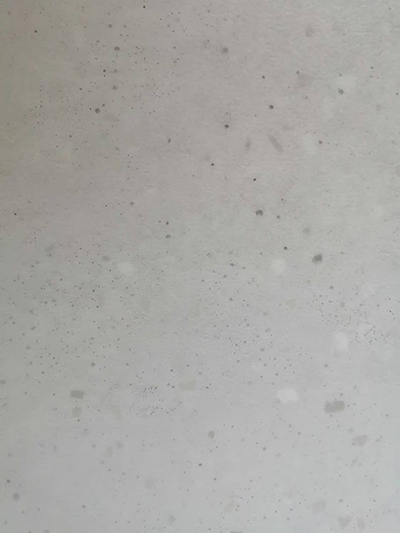

Application examples

Main Configurations

Operates with servo motors and variable frequency drives for precise control.
Features a PLC motion controller paired with a touchscreen for fully automated control.
Equipped with an automatic tension control system using a swing rod mechanism.
Includes multiple automatic alignment correction systems to maintain precise alignment and consistent output.
Utilizes heat transfer oil (thermal oil) for efficient heating, with PID automatic temperature control ensuring consistent and reliable performance.
Includes a main control cabinet and three operation panels, each featuring a touchscreen for easy control.

Customization Options

Customizable configurations are available based on specific production requirements:

Number of layers for PVC flooring: 2-4 layers
Thickness of PVC flooring: 0.2–3 mm
Width of PVC flooring: 1–4.5 m
