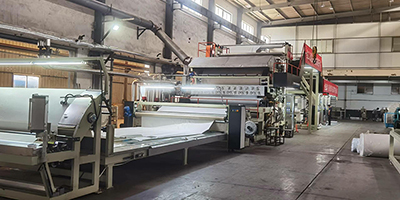

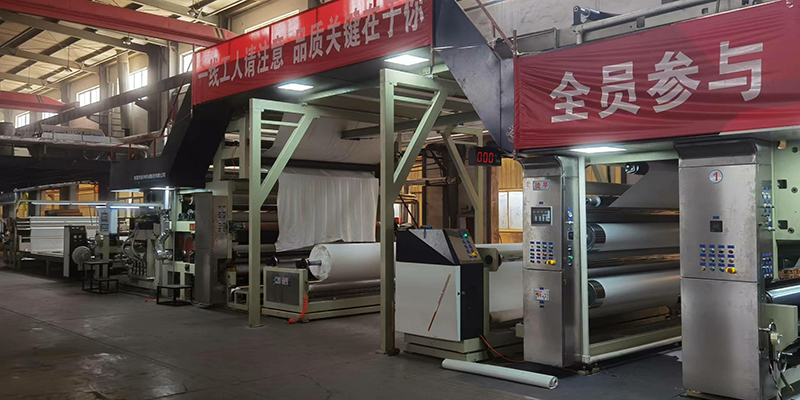

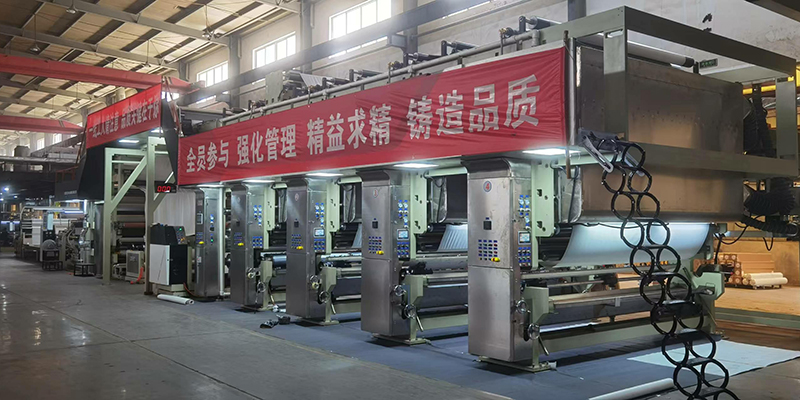

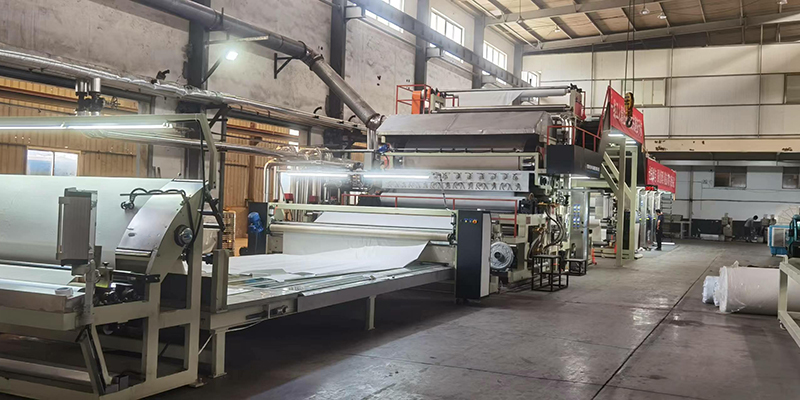

PVC Film Printing Laminating Embossing Machine (for PVC Wall Coverings)

PVC Film Printing Laminating Embossing Machine (for PVC Wall Coverings)
  • PVC Film Printing Laminating Embossing Machine (for PVC Wall Coverings)
  • PVC Film Printing Laminating Embossing Machine (for PVC Wall Coverings)
  • PVC Film Printing Laminating Embossing Machine (for PVC Wall Coverings)
  • PVC Film Printing Laminating Embossing Machine (for PVC Wall Coverings)
  • PVC Film Printing Laminating Embossing Machine (for PVC Wall Coverings)

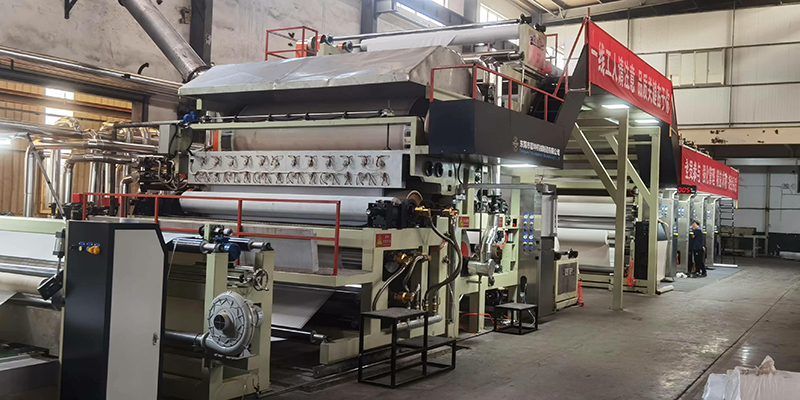

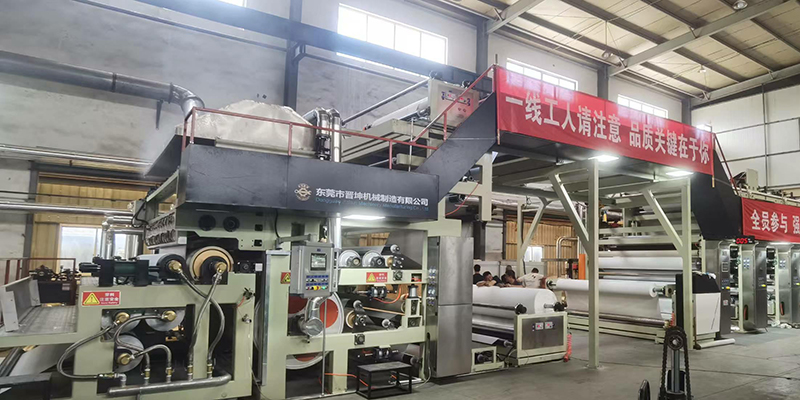

Designed for producing PVC wall coverings, this multifunctional printing solution combines printing, laminating, and embossing in a streamlined process. The PVC film is first printed, then laminated with fiber mesh, and finally undergoes heat embossing and cooling. The finished wall coverings are durable and visually refined, making them a popular choice for hotels, apartments, and home interiors.

Specifications
  • Roller width: 3400mm
  • Printing width: 3200mm
  • Machine speed: 60m/min
  • Production speed: 10-50m/min
  • Cylinder diameter: 190 to 420mm
  • Web tension range: 5-50kg
  • Tension control accuracy: ±0.5kg
  • Maximum pressing force: 1500kg
  • Power consumption: 120kW
  • Machine dimensions (L×W×H): 30.8×6.5×4.5m
  • Printing substrate: PVC film
Application examples
  • PVC Film Printing Laminating Embossing Machine (for PVC Wall Coverings)
  • PVC Film Printing Laminating Embossing Machine (for PVC Wall Coverings)
  • PVC Film Printing Laminating Embossing Machine (for PVC Wall Coverings)
  • PVC Film Printing Laminating Embossing Machine (for PVC Wall Coverings)
  • PVC Film Printing Laminating Embossing Machine (for PVC Wall Coverings)

Main Configurations

  • Controlled by servo motors combined with variable frequency drives for stable and precise operation.
  • Features a PLC motion controller paired with a touchscreen for fully automated control.
  • Includes an automatic tension control system using a swing rod mechanism.
  • Equipped with multiple auto-correction systems to ensure alignment accuracy.
  • Utilizes heat transfer oil (known also as thermal oil) for heating, with PID temperature control for consistent performance.
  • Comes with a main control cabinet and eight operation panels, each with a user-friendly touchscreen interface.

Customization Options

Customization Options Customized configurations can be provided based on specific production requirements, including:

  • Thickness of PVC wall coverings: 0.1–0.3 mm
  • Width of PVC wall coverings: 1–4.5 m
