Laminating Machine | Laminator

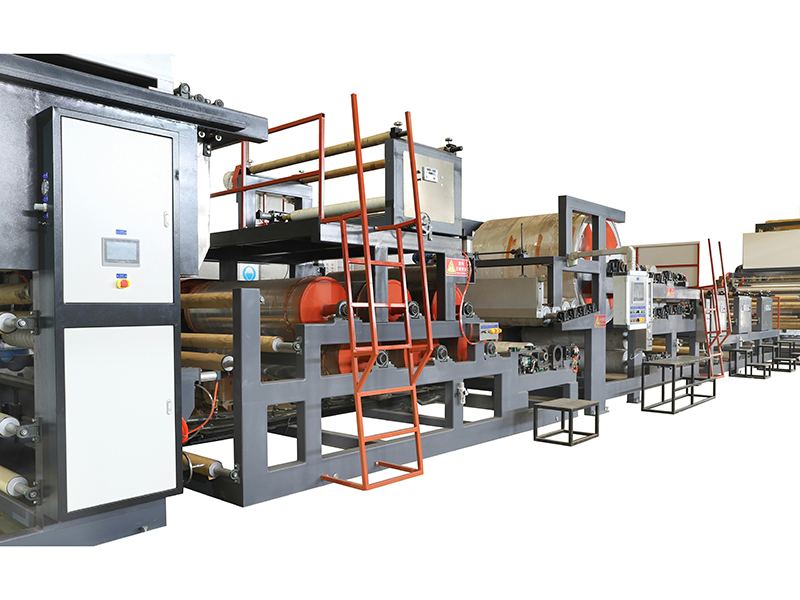

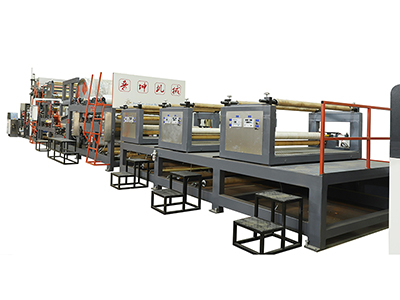

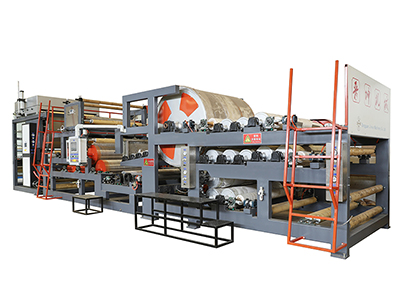

JK-L1450-Laminating Machine, laminator

Max. film width: 1450mm
Cylinder width: 1600mm
Laminating layers: 2-3
Applicable materials: plastic films
Laminating speed: 0-60m/min
Material roll diameter: 600mm
Power consumption: 115KW

Application examples

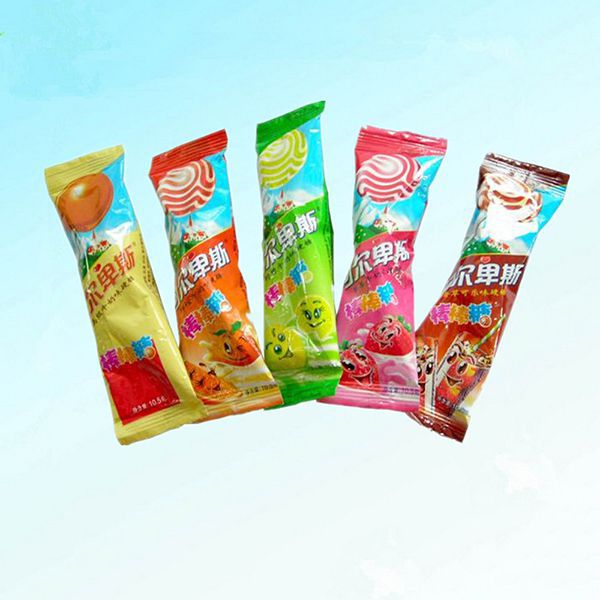

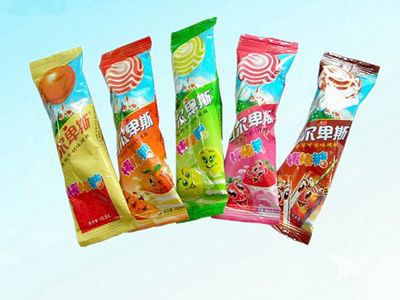

Laminated Candy Packaging

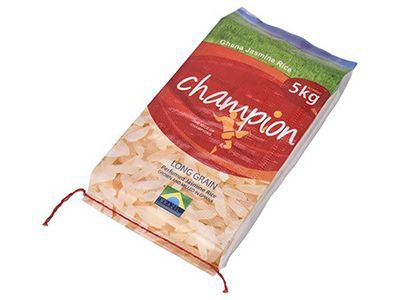

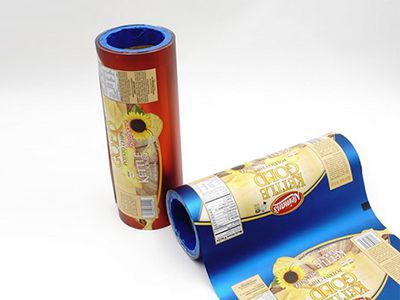

Laminated Flexible Packaging

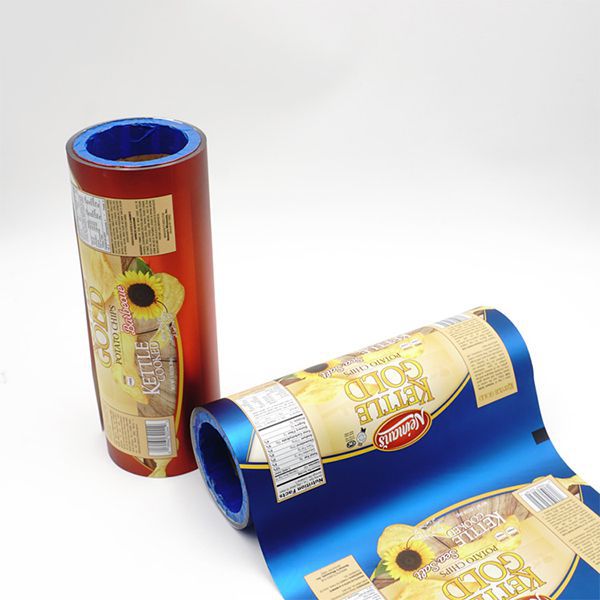

Laminated Food Packaging

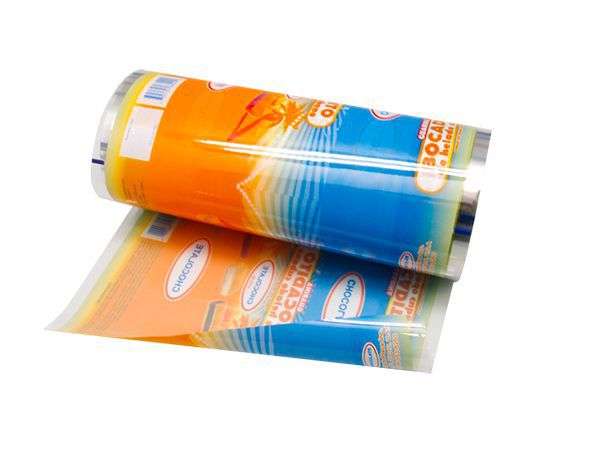

Plastic Film Laminating

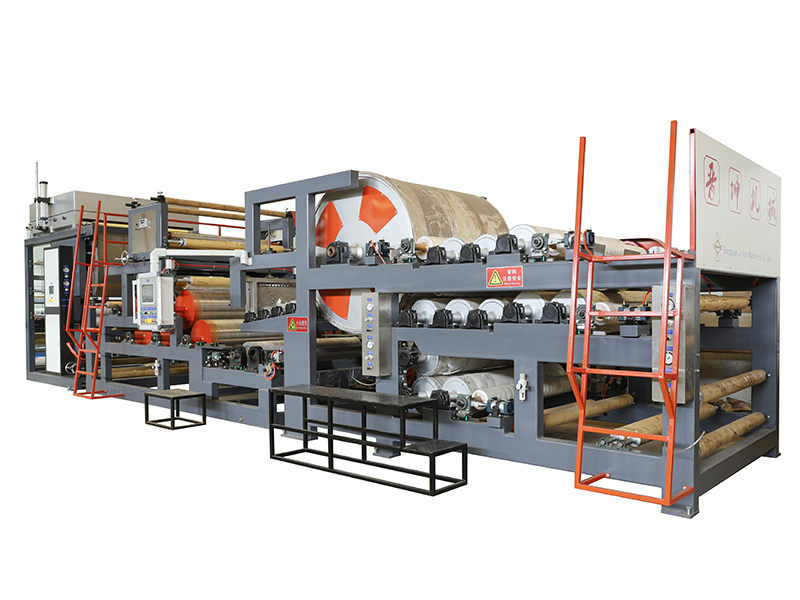

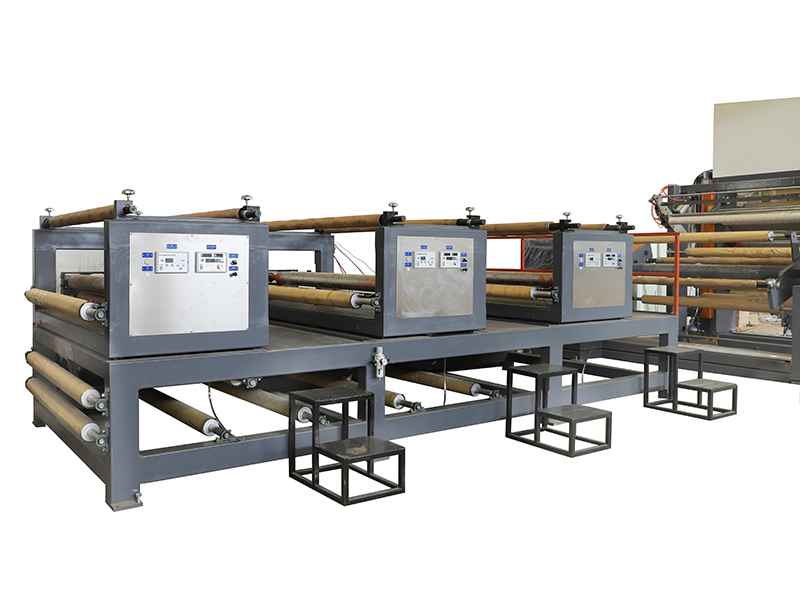

Multi-layer lamination with heating

The heating laminator laminates a variety of plastic films which will shrink and attach to each other after exposure to heat. The laminated film layer achieves up to 2-3, and standard processing width of the laminator is 1450mm.

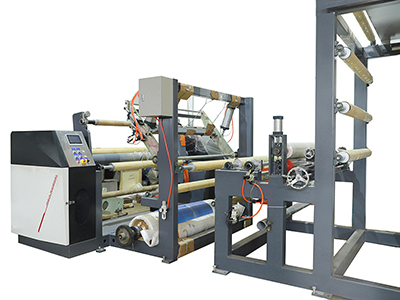

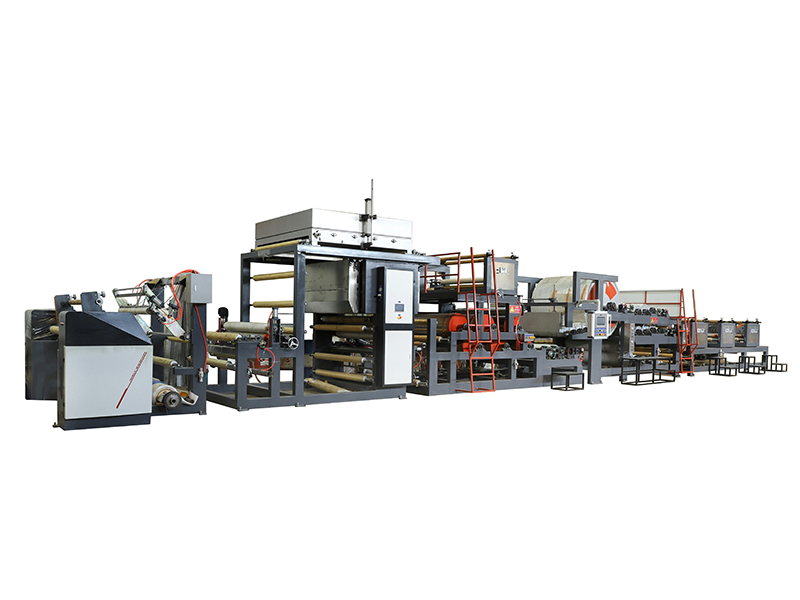

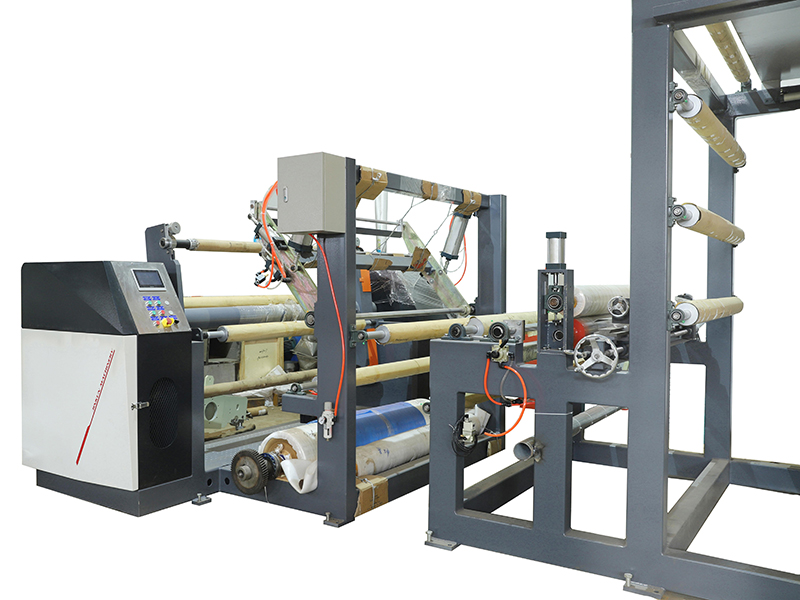

Flexible tandem configuration

With tandem configuration, the laminating machine can be paired with a printing machine and easily changed into an embossing machine simply by changing the mirror roller into embossing roller.

Main configuration

Heating by gas furnace (gas furnace is not provided)
stainless steel exhaust fan
3.7kw motor (DongYuan)
frequency converter (HuiChuan)
PLC system (Mitsubishi)
man-machine interface (Weinview)
precision pressure regulator (Fujikura)
button (Schneider)
frequency conversion detector
temperature meter
low-voltage electrical appliances.

Customization

Laminating width: 1-4.2m.
Laminating layer: 2-6.
All electrical configurations and heating methods can be adjusted according to your requirements.
